Spot Welder

US-935P

Product Specifications

Frequency

35 kHz nominal

Ultrasonic Power Output

900KW maximum

Power Supply

205-240 VAC single phase; 16 Amp max

Weld Force

~440 Newton maximum

Weldhead

40 pounds (18.2 kg)
H - 20cm (200 mm)
W - 7cm (70 mm)
L - 18cm (180 mm

Weld Material

Aluminum (Al)
Copper (Cu)
Platinum (Pt)
Nickel (Ni)
Silver (Ag)
Gold (Au)

Controller Cabinet

71 pounds (33 kg)
H - 20" (508 mm)
W - 9" (229 mm)
L - 16" (406.4 mm)

Visual Display

17" LCD display with mouse

Additional Options

Table Barcode Scanner Touchscreen Monitor

Graphic Display

17" LCD external display with mouse and optional keyboard

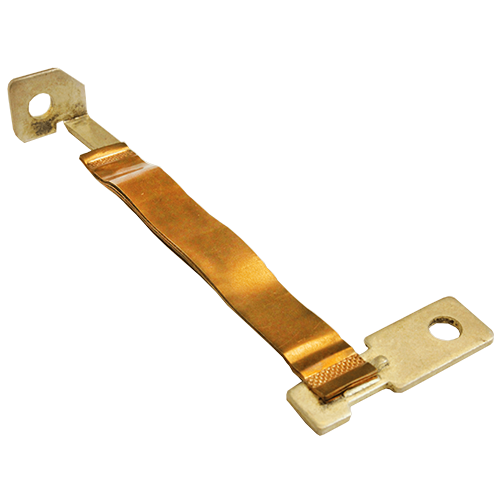

Versatile Welding

or joining nonferrous metals including: Cu, Al, Pt, Ni, Au, Ag
