Introducing the World's First Line of
Closed-Loop Control Ultrasonic Metal Welders
Dynamic Force and Amplitude Control™
Multi-stage welding capability coupled with variable force and amplitude control give servo ultrasonic welders industry leading precise, digital control.
Industry Leading Missing Volume Detection
Single micron resolution allows servo ultrasonic metal welders to detect missing strands and wires, retracted wires, included insulation, and missing foils below 3% of the total cross section area.
Commercial Savings Over Pneumatic Welders
Servo ultrasonic metal welders provide commercial saving with reduced tooling wear, reduced maintenance, increased machine life, shorter weld cycle times, and more…

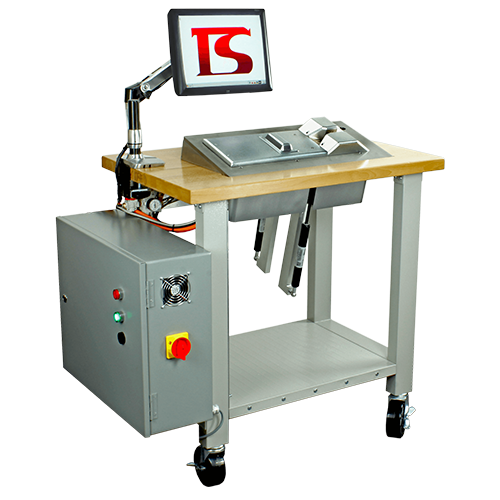

Digital Servo Ultrasonic Wire Splicer
US-3620WS2P
TECH-SONIC’s patent-pending digital servo ultrasonic wire splicer, model US-3620WS2, one in a new line of TECH-SONIC digital servo metal welders, goes far beyond conventional pneumatic ultrasonic wire splicers to combine an ultrasonic power generator and embedded high-speed digital microprocessor control with a servo-controlled weld head utilizing force feedback sensors for precise control.

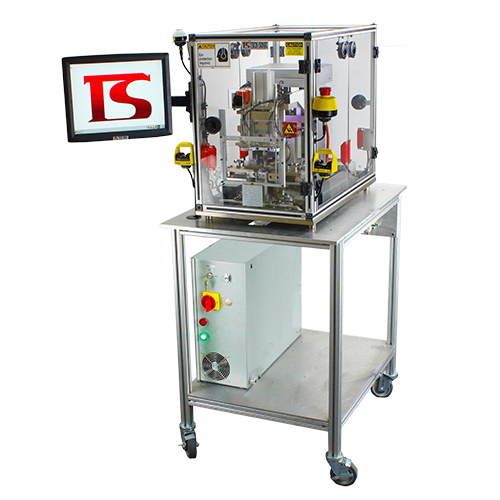

Digital Servo Ultrasonic Ring Termination Machine
US-3620SRT
TECH-SONIC’s patent-pending servo-controlled ring termination machine, model US-3620SRT, provides a whole new ultrasonic metal welding capability beyond conventional ultrasonic metal welds. It provides precise, reliable, and repeatable welds for small and delicate parts without damage.

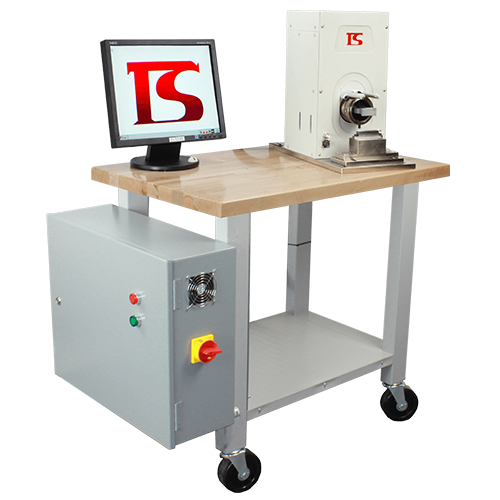

Digital Servo Ultrasonic Spot Welder
US-3620S
Product Specifications
Frequency
20 kHz nominal
Ultrasonic Power Output
3.6 kW maximum
Power Supply
230 VAC single phase; 16 Amp max
Product Specifications
Frequency
35 kHz nominal
Ultrasonic Power Output
900W maximum
Power Supply
230 VAC single phase; 16 Amp max; Nema 6-20r outlet
